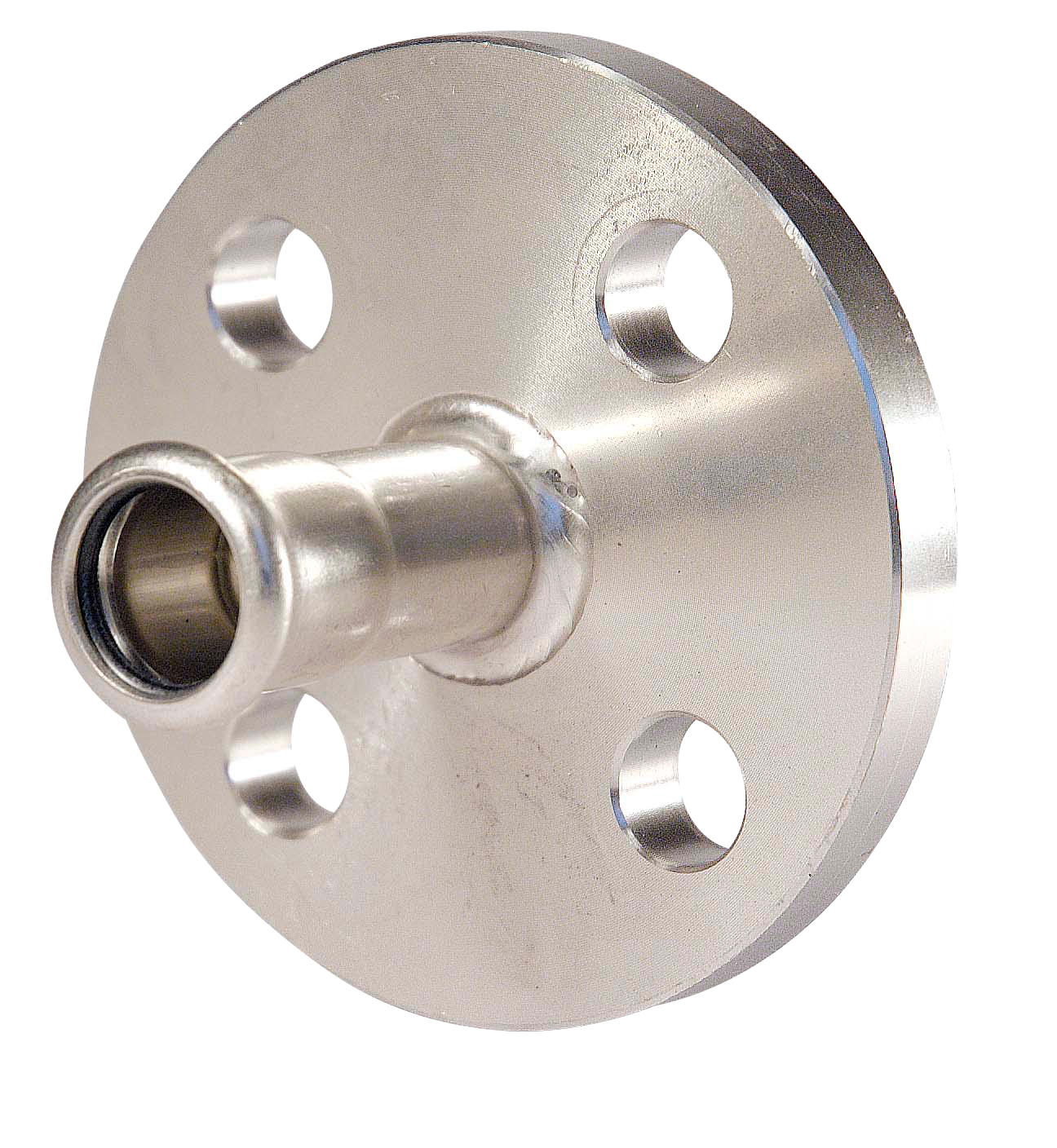

Stainless Steel Flange

Back to Stainless

316

304

Dimensions Stainless Stainless Gas Stainless FKM Stainless Steam
22 PN16 DN20 (4holes) 1240022 1740022 1440022 1340022
28 PN16 DN25 (4holes) 1240028 1740028 1440028 1340028
35 PN16 DN32 (4holes) 1240035 1740035 1440035 1340035
42 PN16 DN40 (4holes) 1240042 1740042 1440042 1340042
54 PN16 DN50 (4holes) 1240054 1740054 1440054 1340054
66.7 PN16 DN65 (8holes) 1240066 1740066 1440066
76.1 PN16 DN65 (4holes) 1240076 1740076 1440076
76.1 PN16 DN80 (8holes) 1240076-80 1740076-80 1440076-80
88.9 PN16 DN80 (8holes) 1240088 1740088 1440088
108 PN16 DN100 (8holes) 1240108 1740108 1440108
Dimensions Stainless Stainless Gas Stainless FKM
139.7 PN16 1240139139 1740139139 1440139139
168.3 PN16 1240168168 1740168168 1440168168
Dimensions 304 Stainless 304 Stainless Gas 304 Stainless FKM
22 PN16 DN20 (4holes) 1540022 1840022 1940022
28 PN16 DN25 (4holes) 1540028 1840028 1940028
35 PN16 DN32 (4holes) 1540035 1840035 1940035
42 PN16 DN40 (4holes) 1540042 1840042 1940042
54 PN16 DN50 (4holes) 1540054 1840054 1940054
66.7 PN16 DN65 (8holes) 1540066 1840066 1940066
76.1 PN16 DN65 (4holes) 1540076 1840076 1940076
76.1 PN16 DN80 (8holes) 1540076-80 1840076-80 1940076-80
88.9 PN16 DN80 (8holes) 1540088 1840088 1940088
108 PN16 DN100 (8holes) 1540108 1840108 1940108
Dimensions Stainless Stainless Gas Stainless FKM
139.7 PN16 1540139139 1840139139 1940139139
168.3 PN16 1540168168 1840168168 1940168168
